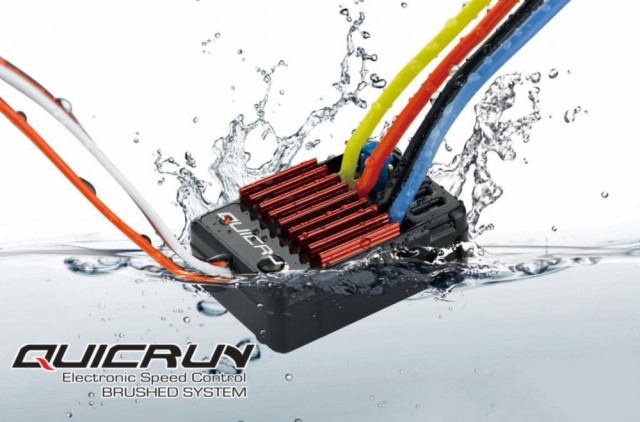

QUICKRUN WP 1060 – BRUSHED HOBBYWING ESC

Features
Water-proof and dust-proof for all-weather races.

Want to drive during tough weather like pro racers? With our QucRUN brushed series, you no longer need a traditional waterproofing box. Our ESC is completely waterproofed so that you can save not only space in compartment, but also weight of the vehicle.

Multiple protections

Low voltage cut-off protection for battery / Over-heat protection / Throttle signal loss protection
Jumper

The «Battery Type» and «Running Mode» can be programmed by jumpers. Battery Type: Lipo or NiMH.
Running Mode: Fwd/Br, Fwd/Rev/Br or Fwd/Rev (Fwd =Forward, Br=Brake, Rev=Reverse).

Current Continuous: 60A, Burst: 360A

Input: 5-9 cells NiMH/NiCd or 2-3S LiPo

Built-in BEC: 5V@2A (linear mode)

Resistance: Fwd 0.001Ω, Rev 0.002Ω

Motor Supported: Brushed motors

Suitable Motor: With 2 Lipo or 4-6 NiMH 540 or 550 Size Motor: ≥12T Or RPM<30000 @7.2V

With 3 Lipo or 7-9 NiMH 540 or 550 Size Motor: ≥18T Or RPM< 20000 @7.2V

Suitable Car: 1/10: Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank

Size: 36.5 x 32 x 18

Weight: 39g (Not including wire)
